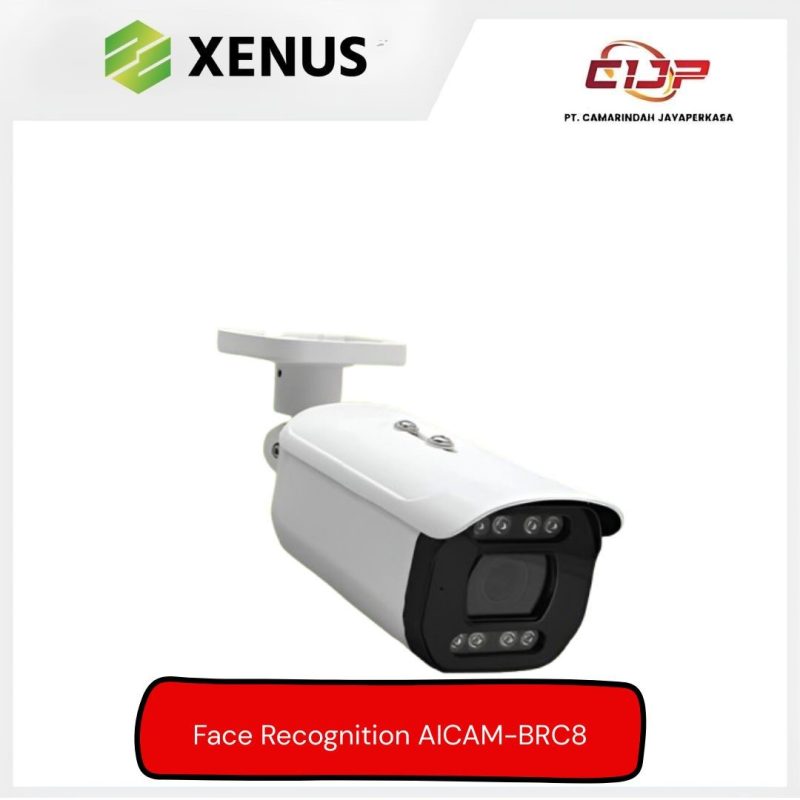

Face Recognition Camera AICAM-BRC8
CCTV Face Recognition Camera
Cocok untuk pintu masuk dan keluar, kehadiran di kampus, akses ke area yang indah, pengunjung hotel, bank, stasiun, toko ritel, dan skenario lainnya.
Product Description:
- 1/1.8″ 4 million pixel CMOS sensor.
- Embedded intelligent deep learning face algorithm: It can extract target features by itself and from deep face images that can be learned.
- Supports multiple face capture modes: recognition priority mode, fast, interval, after leaving and other face capture modes; the number of captures can be set.
- Supports up to 32 face detections per frame, 100,000 face records, and 50,000 face databases.
- Supports uploading face pictures, humanoid pictures and original pictures; pictures encoding quality can be set.
- Supports whitelist, blacklist, VIP list management.
- Supports infrared / full color / dual light mode, support PWM dimming.
- Supports standard ONVIF, GB28181, HIK, DH, and other private protocols.
- Supports electric zoom (optional), automatic aperture (optional).
- Provide SDK development kit, supports secondary development, and supports CGI, HTTP, WEBSOCK protocol docking.
- Supports AIISP image enhancement to enchance low-noise effect.
- Supports Google Kernel Browse without plug-in.
Spesifications:
Main control chip | Hi3516DV500, ARM Cortex A55@850MHz Dual core |
Sensor | 400W 1/1.8 IMX664 black light level CMOS sensor, color:0.0001Lux@F1.0, black white: 0.0001Lux@F1.0 |
Watchdog | Hardware watchdog |
Wide dynamic range | 120 dB |
Image parameters | |
---|---|
Main stream frame rate resolution | 30 fps@ (2592x1520, 2560x1440, 1920×1080) |
Substream frame rate resolution | 30 fps@ (704x576, 640x480) |
Three-stream frame rate resolution | 30 fps@ (704x576, 640x480) |
Video compression standards | H.265+/H.265/H.264 |
Video compression bit rate | 512 Kbps~32 Mbps |
Character & watermark overlay | Support |
Shutter | 1/125~1/1000005 |
Noise reduction | 3D/2D noise reduction |
Wide dynamic range | Support digital wide dynamic range |
Auto iris | Support DC IRIS automatic iris |
AIISP | Support AISP image enhancement |
Image function | Supports backlight compensation, strong light suppression, mirroring, flipping, gain and other functions |
Network connection | |
---|---|
Simultaneous preview of channels | Maximum 12 channels |
Network protocol | Supports CGI, HTTP, HTTPS, GB28181, SIP, RTMP, TCP/IP, UDP, RTP, FTP, RTCP, RTSP, NTP, DHCP, DNS, DDNS, SNMP, SSL/TLS, WebSocket and other network protocols, and supports ONVIF and other standards protocol |
Browser | Use plug-in preview: IE10, IE11 Use plug-in-free preview: Edge, Chrome, Firefox and more |
Auxillary Interface | |
---|---|
Network | 1 RJ45 Ethernet port, 100M/1000M adaptive |
Power | DC5.0*2.1 |
Output | 1 relay NO, 3.81mm-2P terminal block |
Mic | Built-in microphone (optional) |
Speaker | Built-in 2W speaker (optional) |
Professional intelligence | |
---|---|
Capture mode | Face capture mode: quick, interval, after leaving, etc.; the number of captures can be set |
Face capture pixels | Support face detection between 30*30-700*700 pixels |
Face exposure | Support |
Picture information | The image adopts JPEG encoding format and supports uploading of face images and original images; the encoding quality of face images can be set |
Upload method | Private protocol, FTP, HTTP |
Face storage | Supports up to 50,000 face databases |
Product size:
General parameters | |
---|---|
Product size | 149mm 65mm*63mm |
Product weight | 0.98kg |
Working temperature | -20°C~+60°C |
Power supply and power consumption | DC12V power input, 6W (MAX) power consumption |
